Pi-EDGE & LattePanda Portable Hacker’s Handheld Build Guide


Getting Started

Follow these steps to assemble and set up your Pi-EDGE. This guide applies to both DIY kits and pre-built units that require upgrades. If you encounter any issues, feel free to contact us for support.

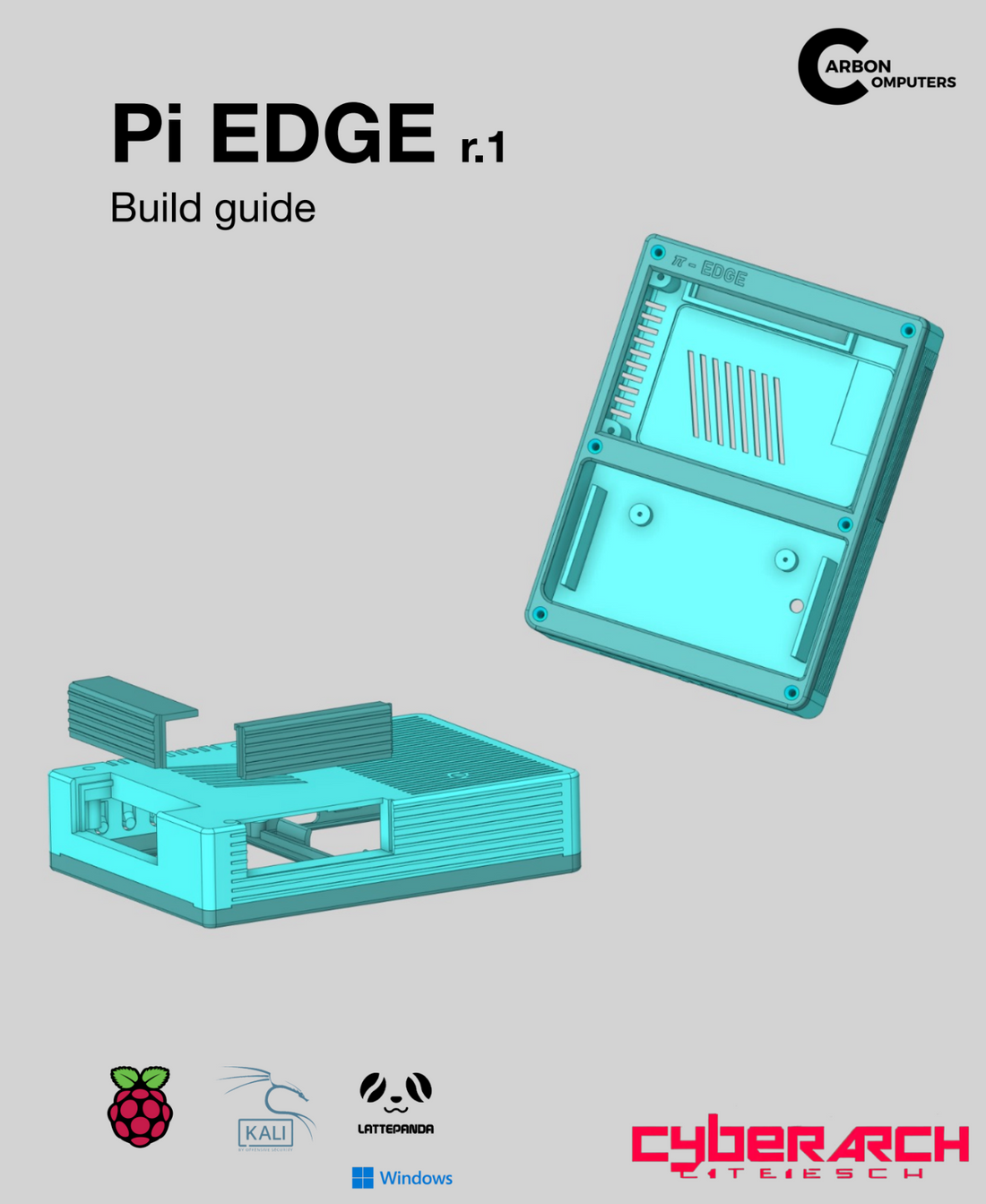

Build Guide PDF

Parts Required

To build your Pi-EDGE, ensure you have the following components:

Main Components:

  • 3D Printed Case (Link available upon request)

  • 4.3” WaveShare LCD (HDMI model for Pi & LattePanda; FPC/DSI model for Pi only)

  • HDMI FPC Cable & USB Cable (USB to USB or Micro-USB depending on build)

  • M2-M1 Screws (5-10mm) (Can be trimmed to length with bolt cutter)

  • PiSugar 3 Plus 5000mAh UPS (Compatible with both Pi & LattePanda)

  • Mini Bluetooth Keyboard

Supported Boards:

  • Raspberry Pi 4B+

  • LattePanda v1.0

Display Mounting

For Raspberry Pi Builds:

  1. Connect the DSI cable to the Raspberry Pi as per the display manual.

  2. Mount the Pi onto the display using the included hardware.

  3. Secure the assembled display to the back case.

For LattePanda Builds:

  1. Use the HDMI FPC cable for video output.

  2. Connect the USB to Micro-USB cable for touch input.

  3. Mount the LattePanda board to the back case.

  4. Secure the display separately as per the mounting design.

Power Setup

Connecting Power Cables:

For Raspberry Pi Builds:

  • Positive (Red) → Header Pin #2

  • Negative (Ground) → Header Pin #6

For LattePanda Builds:

  • Positive → Bottom two headers

  • Negative → Top two headers

Final Assembly

  1. Mount the display and place the keyboard below it.

  2. Secure the front face cover using 6x M2 screws (10-14mm).

Testing & Setup

  1. Verify that power cables are correctly connected.

  2. Pair the Bluetooth keyboard or use the included USB dongle.

  3. For Raspberry Pi Builds:

    • Flash your preferred OS image (e.g., Kali Linux) and boot.

  4. For LattePanda Builds:

    • Windows OS comes pre-installed and is ready to use.
